Overview
The Diamond Acrylic PMMA Edge Polishing Machine from UNIQUE-CNC is engineered to deliver optically clear, professional-quality finishes with maximum efficiency. Designed for polishing acrylic, plexiglass, PMMA, PETG, PVC, organic glass, and other plastics, this machine removes surface imperfections from the initial cutting process, achieving smooth, crystal-clear edges with minimal labor.
With a robust granite worktable for enhanced stability and precision, the P series acrylic polishers handle larger sheets effortlessly. They support bevel polishing from 0° to 60°, offering flexible finishing options for a variety of project needs. Thanks to advanced blade technology, the machine ensures longer blade life and simplifies blade replacement, reducing maintenance time and cost.
Available in polish lengths of 1300mm(51.18"), 1600mm(62.99"), 2500mm(98.43"), 3200mm(125.98"), or customizable to your needs, and capable of processing sheet thicknesses up to 110mm, this polisher is ideal for high-quality edge finishing in both manufacturing and fabrication environments.
- Granite table
- Adjustable 0-1mm cutting depth
- 15000RPM spindle
- Up to 3200mm(125.98") length
- Up to 110mm thickness
- 0-60 degress edge polishing
Technical Specs
The Diamond Acrylic PMMA Edge Polishing Machine by UNIQUE-CNC is engineered with a precision mechanical structure to optimize performance and stability.
Its frame is designed according to mechanical principles, ensuring a lower center of gravity and enhanced overall balance. The spindle mounting position is carefully aligned with the center of the rotational torque, significantly reducing vibration and ensuring that the acrylic polishing process is smoother, more stable, and more efficient.
In addition, the machine features a heavy-duty granite worktable, which not only improves flatness and precision but also enhances vibration resistance during high-speed operations. Advanced blade technology extends tool life and simplifies maintenance, while the flexible polishing angle range (0°–60°) offers exceptional versatility for a variety of edge-finishing applications.
Together, these design innovations make the P Series acrylic edge polisher an ideal solution for achieving crystal-clear, glass-like finishes on acrylic, plexiglass, PMMA, perspex,polystyrene, polycarbonate,resin and some composite plastics—even on larger or thicker sheets.
| Processing | |
|---|---|
| Length: | 1300mm(51.18"), 1600mm(62.99"), 2500mm(98.43"), 3200mm(125.98") |
| Thickness: | 110mm(4.33") |
| Cutting Depth: | 0-1mm(adjustable) |
| Spindle | |
|---|---|
| Spindle Power: | 1.5kW(2.2kW) |
| Speed | 15000RPM |
| Degree: | 0-60 Adjustable |
| Cooling: | Air Cooling |
| Body | |
|---|---|
| Dimension: | 1940x1160x1650mm(U-P1300) / 3260x1460x1650mm(U-P2500) |
| Weight: | 1350KG(U-P1300) / 2100KG(U-P2500) |
| Frame Material: | Cast steel, Aluminum |
| Table: | Granite |
| Requirements | |
|---|---|
| Electricity | 220V/380V/480V 50-60HZ |
| Control: | LCD Display, PLC |
| Polishing Tools | PCD / Diamond |
Machine Working Video
Price Lists
| Models | Processing Length x Thickness | Price |
|---|---|---|
| U-P1300 | 1300mm (51.18") x 110mm(4.33") | $7,800 |
| U-P1600 | 1600mm (62.99") x 110mm(4.33") | $8,400 |
| U-P2500 | 2500mm (98.43") x 110mm(4.33") | $9,800 |
| U-P3200 | 3200mm (125.98") x 110mm(4.33") | $11,600 |
Features
The Diamond Acrylic PMMA Edge Polishing Machine is equipped with advanced features to ensure top-quality edge polishing for a wide range of materials. Below are the key features:

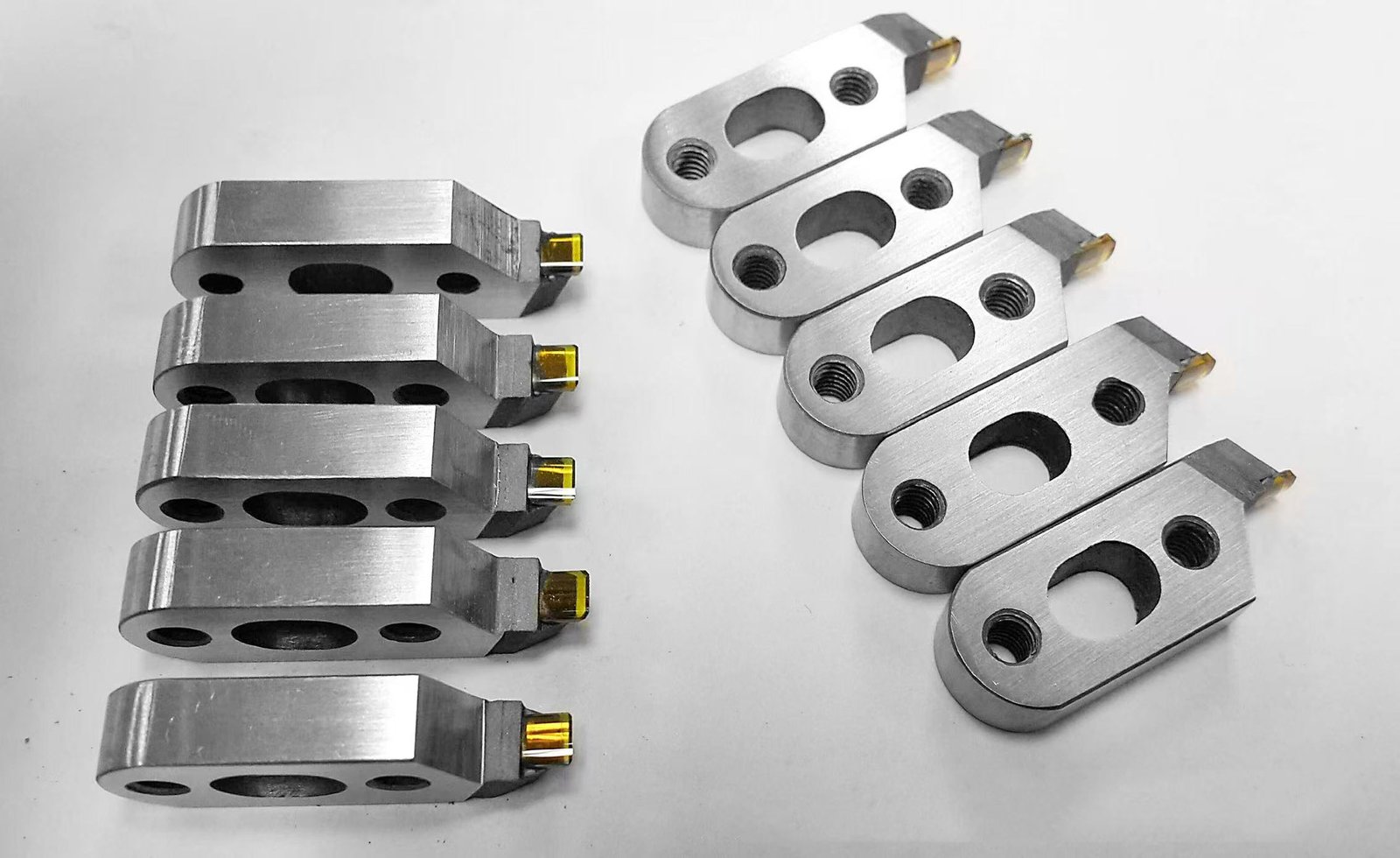

- Diamond tipped cutter holder mounted on inverter-controlled, high-frequency spindle
- Cutter assembly runs on precision linear rails for smooth and accurate polishing
- Material is firmly clamped to the work table for maximum rigidity
- Multiple pneumatic clamping cylinders for flexible workpiece holding
- Optional dust collector
- Diamond blade for improved longevity
- Only consumable part is the diamond tool, which saves cost
Applications
The Diamond Acrylic PMMA Edge Polishing Machine is designed to polish a variety of materials, making it highly versatile for different applications. These include:
- Acrylic (PMMA)
- Plexiglass
- Organic Glass
- Plastic
- PVC
- PMMA, PETG, and PE
- Resion

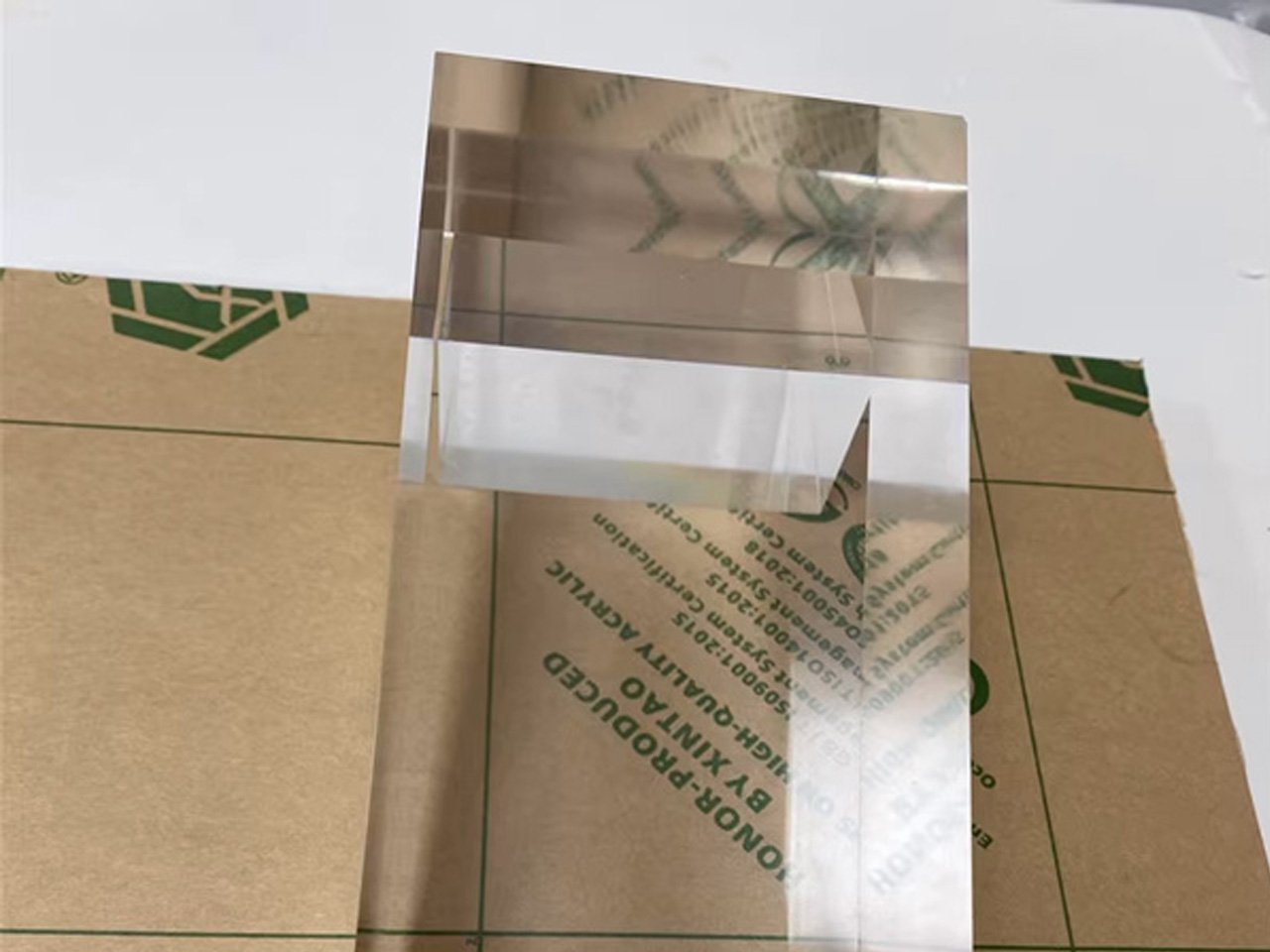

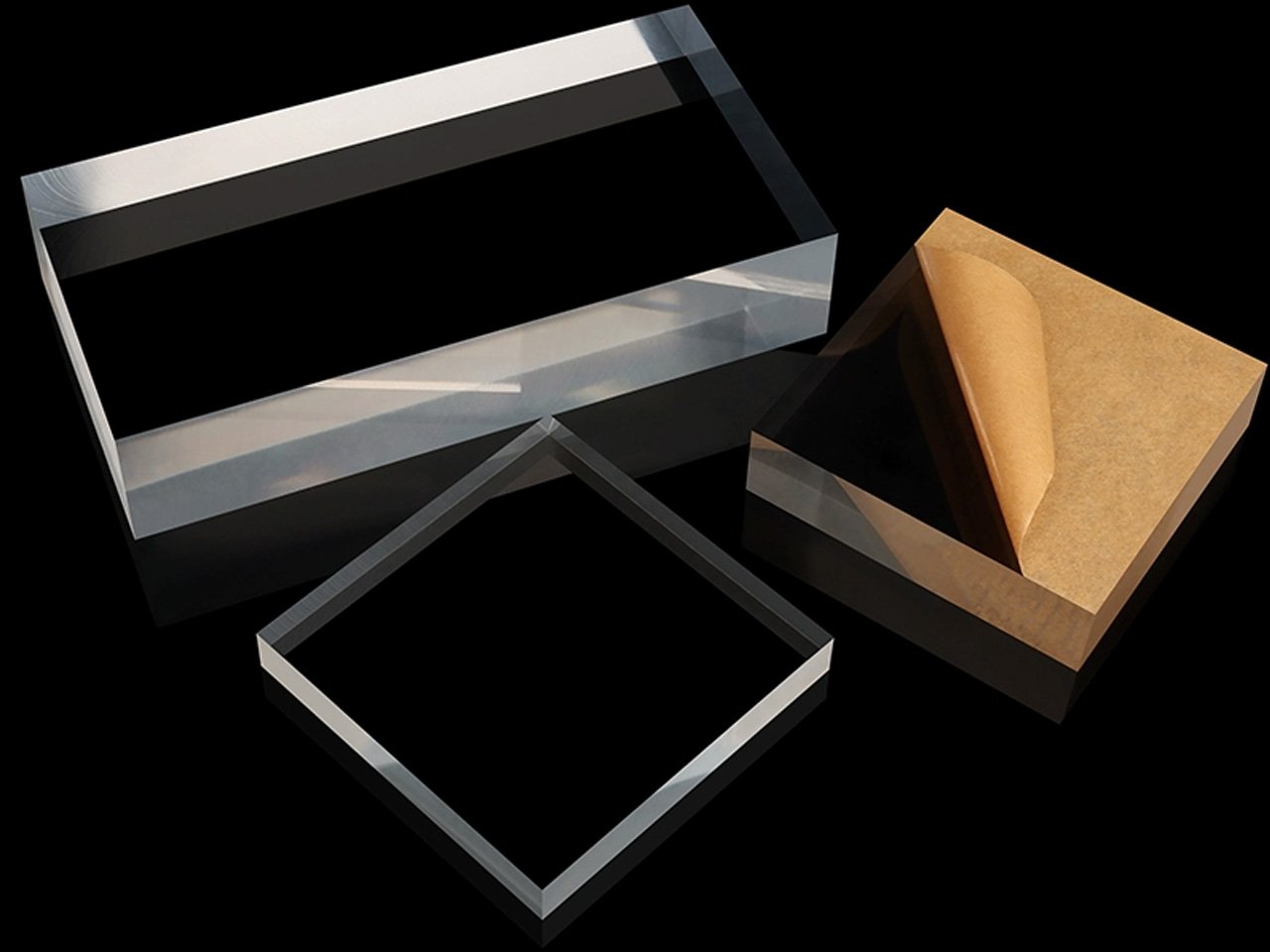

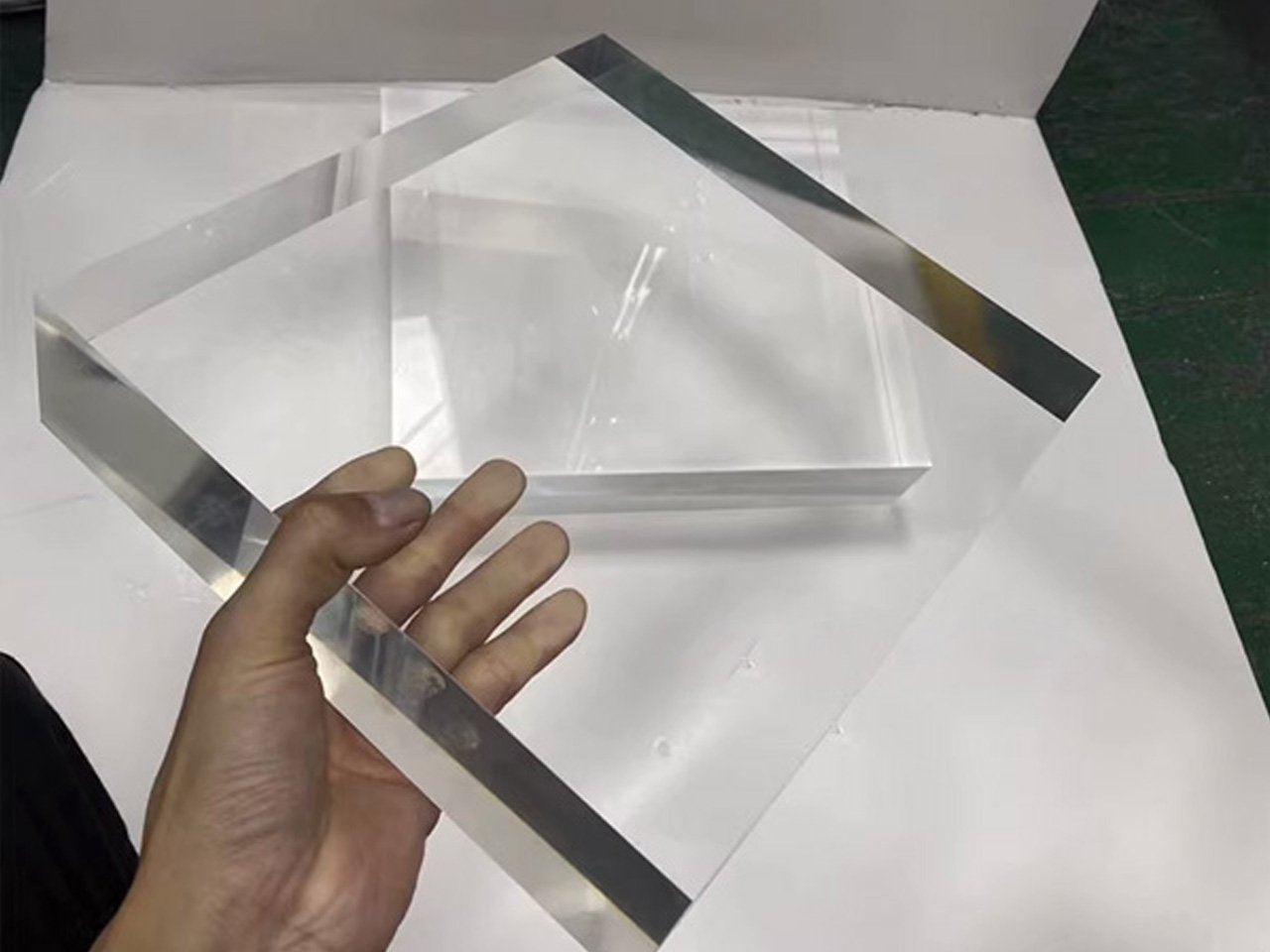

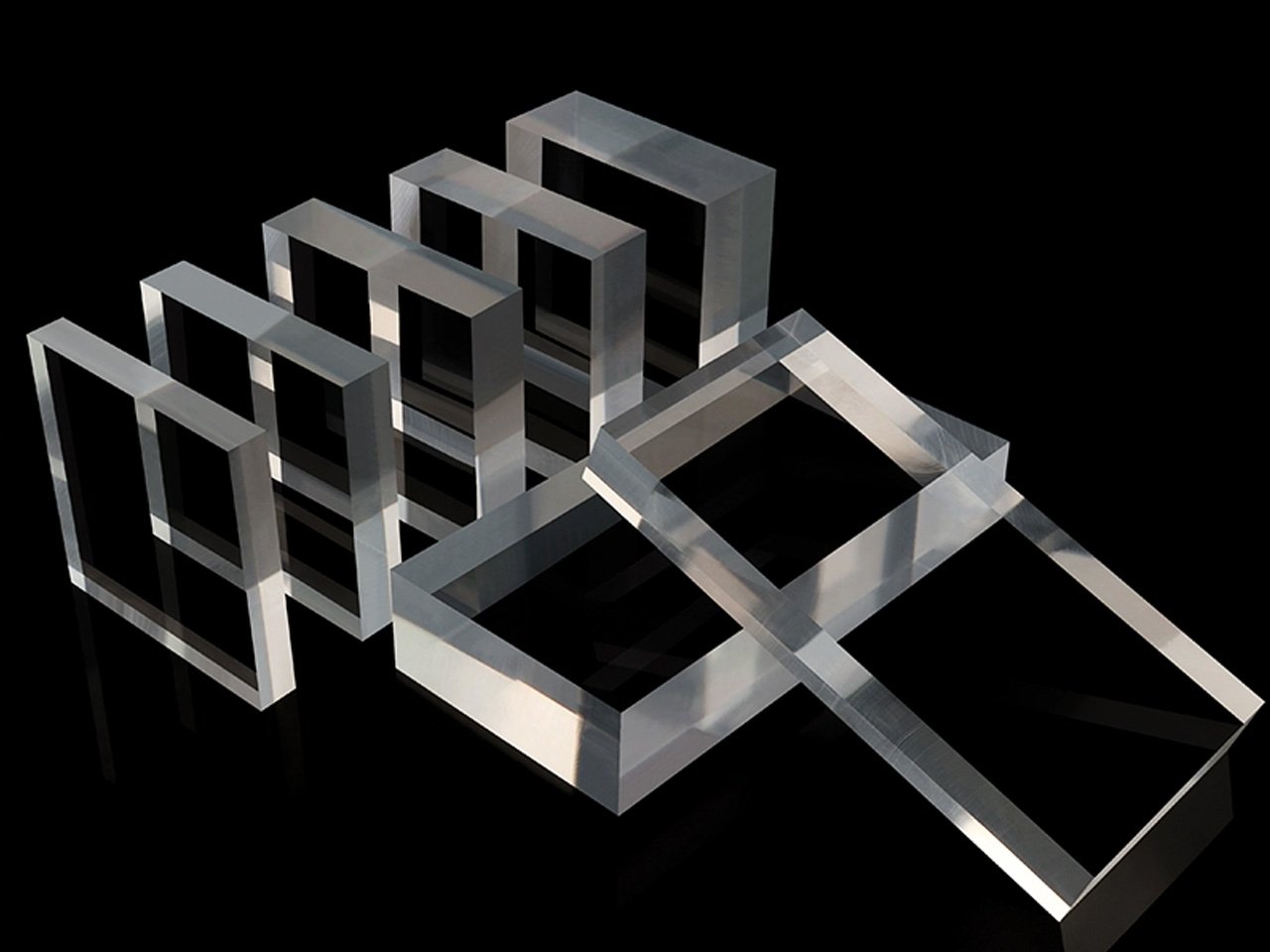

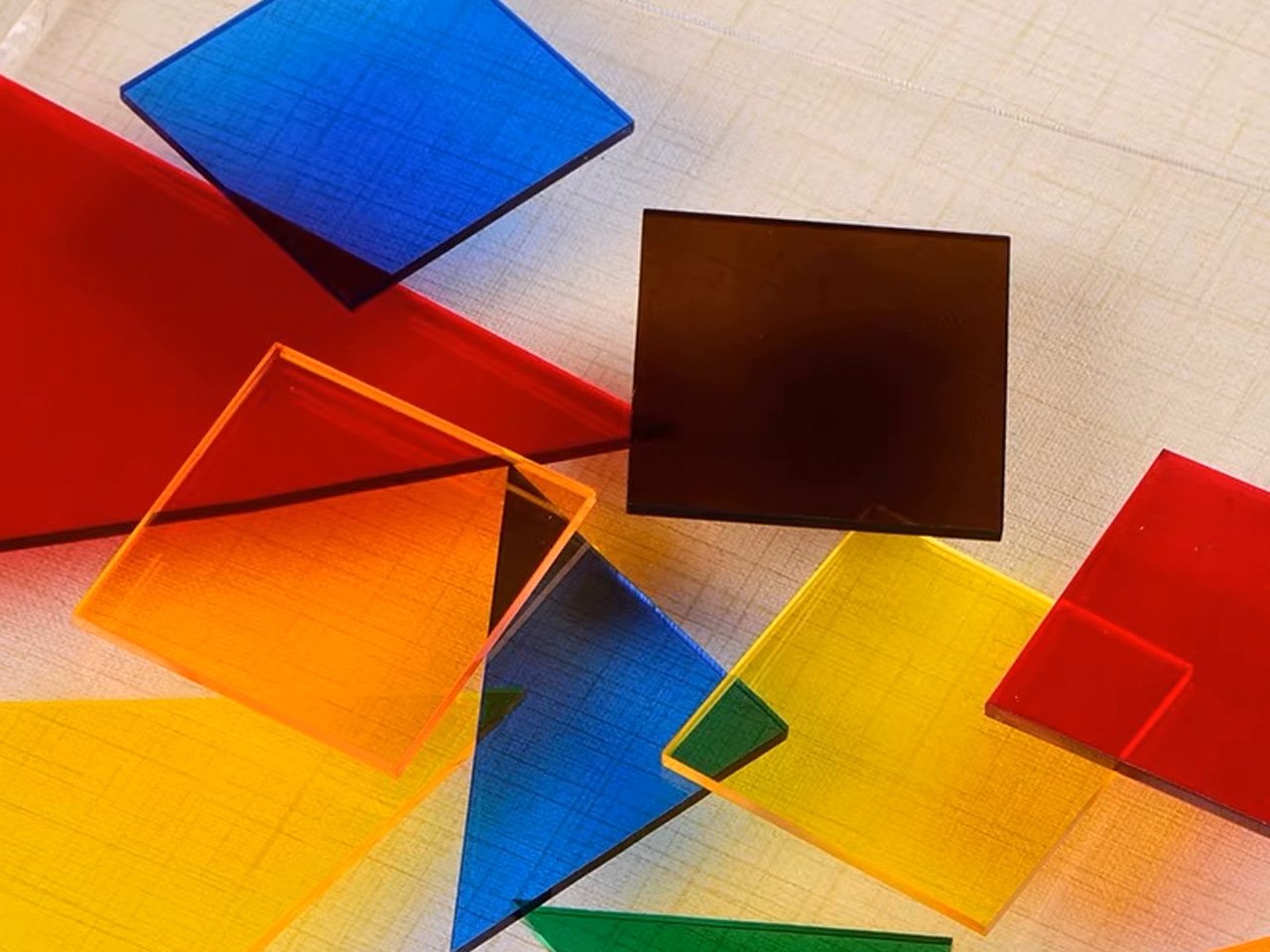

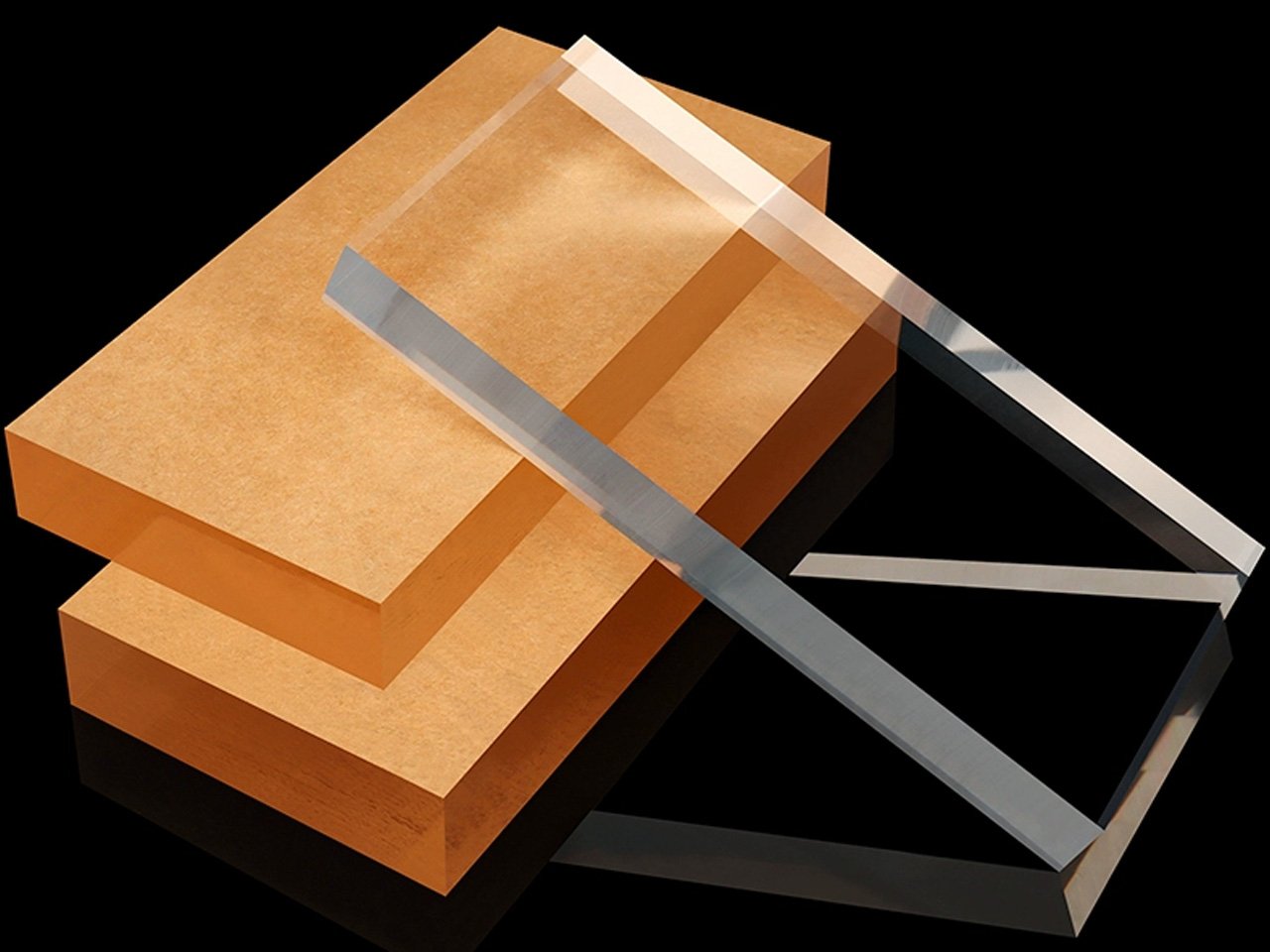

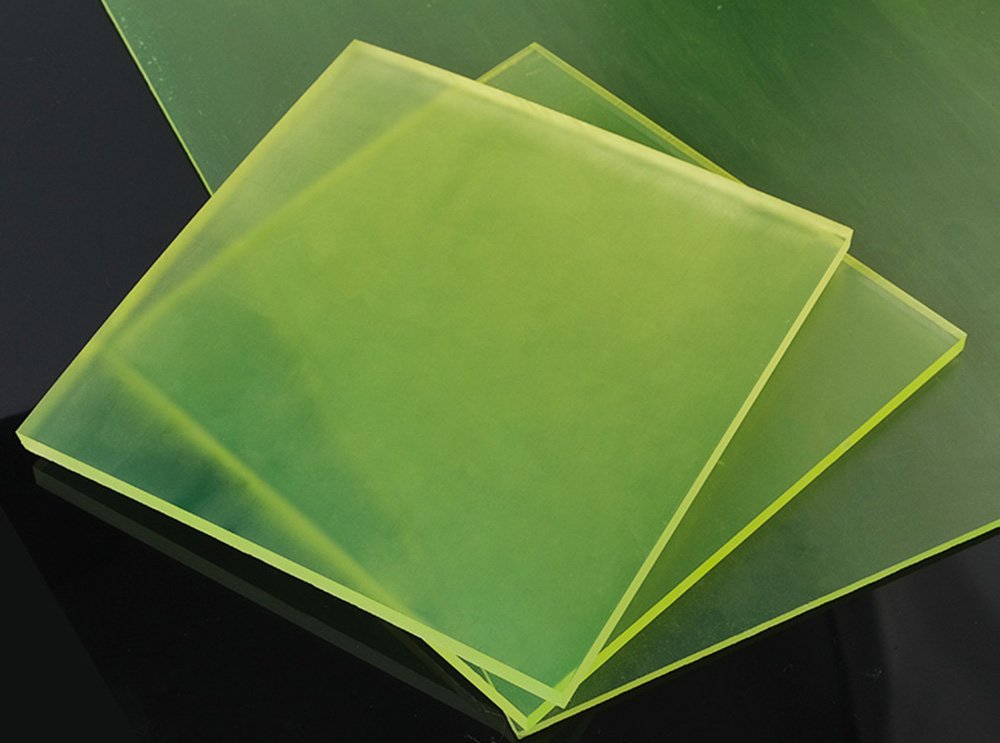

Working Gallery

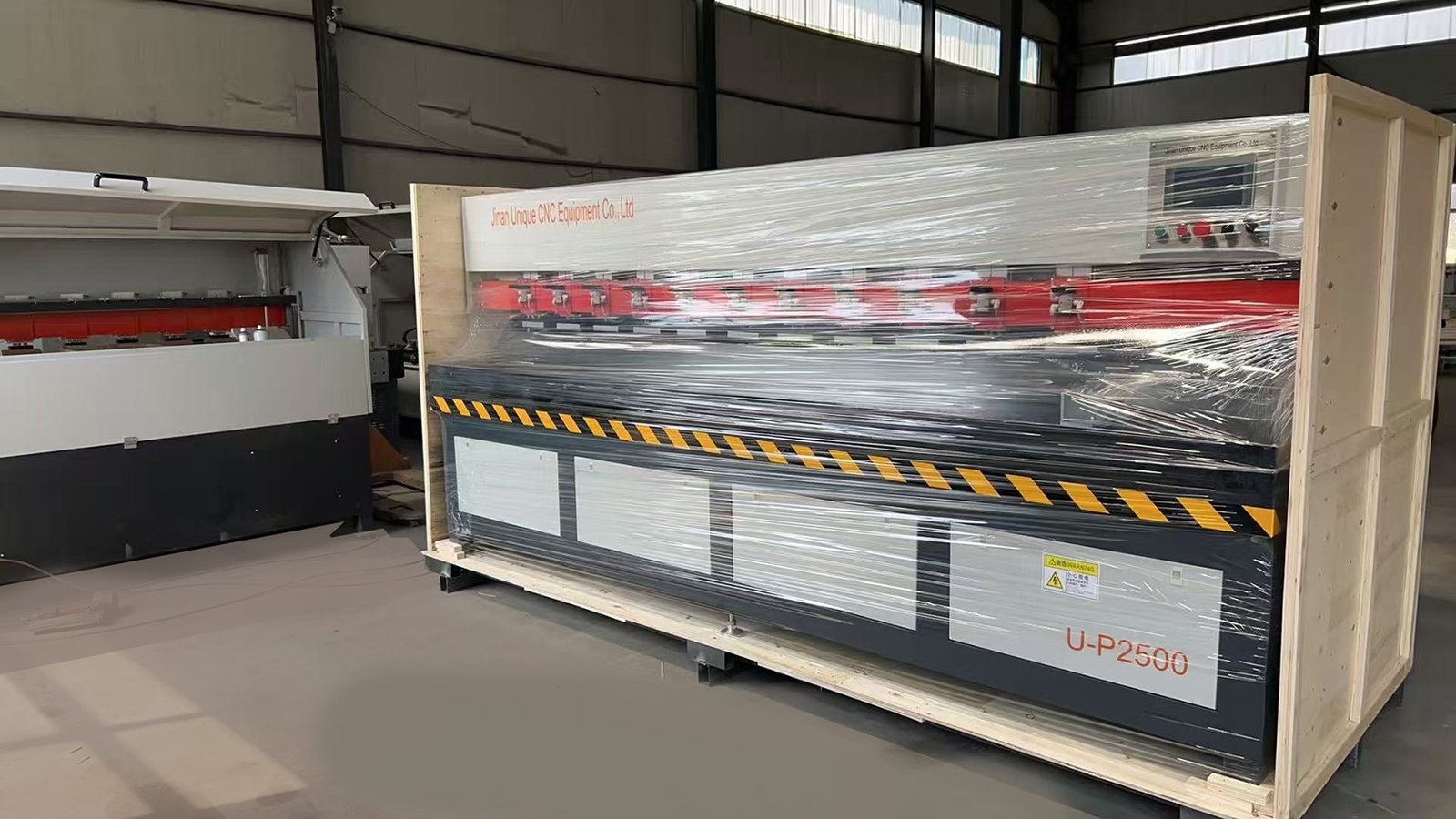

U-P1300 / U-P1600 / U-P2500 / U-P3200
Models110mm (4.33")
Maximum Polishing Acrylic ThicknessPrecision Manufacturing
Our machine is built with robust materials for stable performance and is precision-made with meticulous care.
Warranty
3 Years
Table
Granite
Get Latest Quotation.
Contact us now to confirm your best machine, receive a competitive quotation and delivery details.
ContactVideos
Acrylic Polishing Machine Manual
(PDF 2,866 KB)The documentation, including the user manual, electrical specifications, and basic maintenance instructions for the U-P1300 acrylic polishing machine, also applies to other models of acrylic diamond polishing machines.
DownloadSample Bill of Lading
(PDF 524 KB)The Bill of Lading is required to pick up the goods at the port. We will send it to you once the shipment has been dispatched.
DownloadFAQ (Frequently Asked Questions)
1. What is the maximum thickness that the Diamond Acrylic Polishing Machine can process?
The machine can process acrylic sheets with a maximum thickness of up to 110mm (4.33 inches).
2. Can the machine polish edges at all angles?
Yes, the Diamond Acrylic Polishing Machine is capable of polishing edges from 0 to 60 degrees, providing versatility for different edge finishes.
3. What materials can the machine process?
This machine is designed for polishing materials such as acrylic (PMMA), plexiglass, organic glass, PVC, PMMA, PETG, and PE.
4. What is the advantage of using a granite table in the machine?
The granite table provides increased stability and precision during the polishing process, ensuring smooth and consistent finishes on acrylic sheets.
5. What is the delivery time?
Normally our delivery time is 3 days, but due to the need to confirm the voltage used by the machine and some specific requirements, the delivery time will be about 7 days. The time for transportation by sea or land rail is about 10-50 days.
