Overview

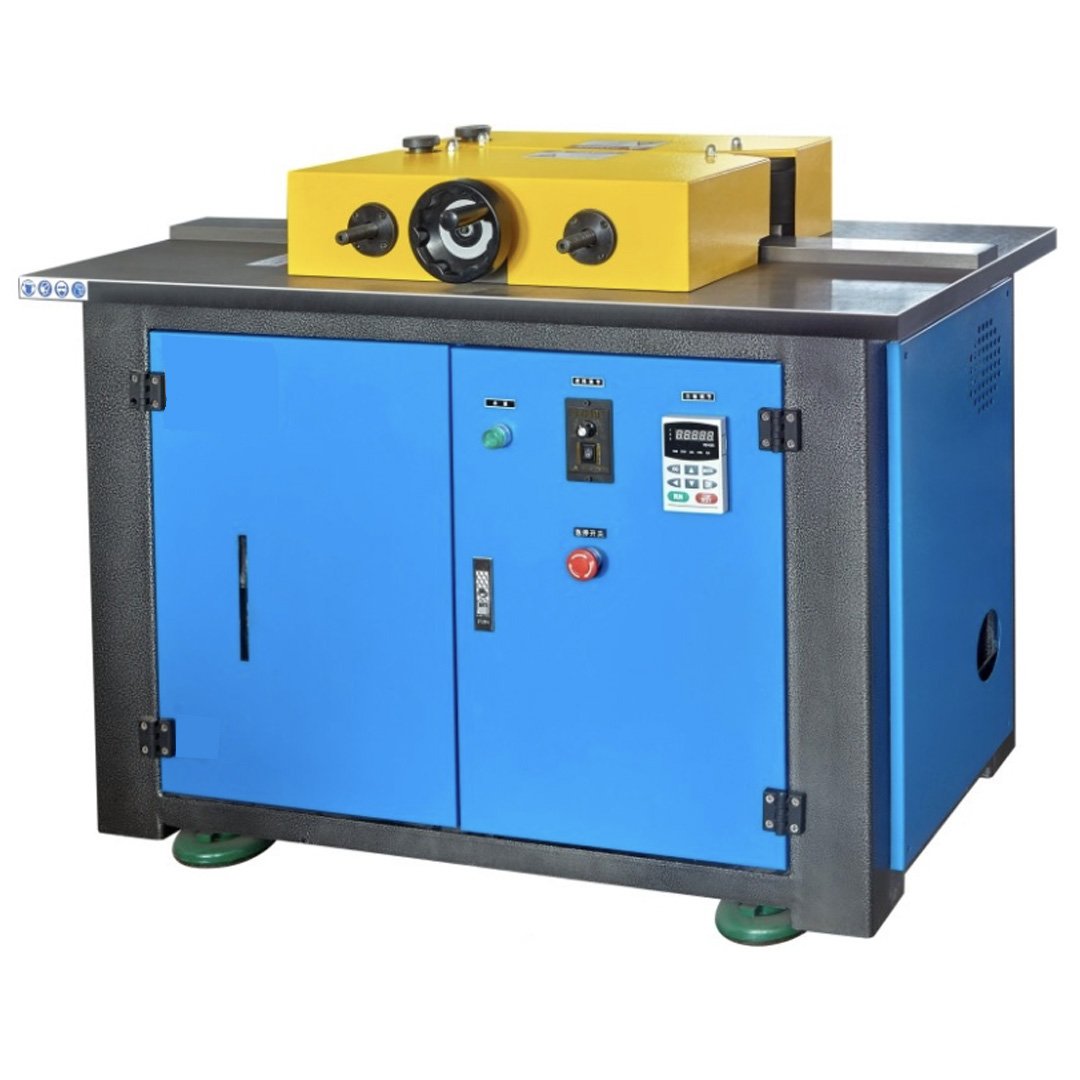

The U-P1500V Straight Acrylic Diamond Polishing Machine is a compact and efficient solution for high-quality edge finishing of acrylic materials. It eliminates the inefficiencies of traditional polishing methods such as fabric wheels or flame polishing. Using a precision diamond blade, the U-P1500V produces mirror-clear finishes with excellent light transmittance, making it ideal for lighting displays, signage, and high-transparency acrylic applications.
- Processing Angle 90 degree
- Polish Max. Thickness 30mm
- Bevel Surface Polishing Max. Thickness 45mm
- Machine Weight 330KG
Product Details
Traditional acrylic polishing methods such as fabric buffing and flame polishing are labor-intensive, inconsistent, and prone to material waste. The U-P1500V Straight Acrylic Diamond Polishing Machine uses a diamond blade to perform high-precision edge cutting and polishing in one pass. This advanced technique delivers optical-grade smoothness and consistent transparency, essential for applications requiring perfect light diffusion and clarity.
- π§ High Efficiency: Eliminates the need for multiple polishing steps. Continuous feeding and automatic adjustment reduce labor costs.
- β‘ Low Material Loss: Stable cutting path and consistent tool pressure avoid common human-induced damage during polishing.
- π High Precision: Cutting thickness and depth can be precisely adjusted, supporting workpiece thicknesses from 2mm to 80mm.
- π¨ Clean & Eco-friendly: No flame, no dust, low noise, and low energy consumption make it suitable for enclosed or clean environments.
- π‘οΈ Safe Operation: Fully automatic operation avoids direct human interaction during processing, reducing the risk of injury.
- π¦ Intelligent Design: Integrated chip collection box for debris management and a unique tool cover plate that keeps the workpiece perfectly aligned for optimal polishing results.
With a cutting speed of 0.6β1.0 meters per minute, the U-P1500V combines precision and productivity in a compact form. It's an ideal choice for manufacturers who require efficient, high-quality acrylic edge finishing without the complexity of large industrial systems.
Technical Specs
The U-P1500V Straight Acrylic Diamond Polishing Machine is a compact yet powerful machine designed for high-precision edge finishing of acrylic and plastic materials. Engineered with a durable mechanical structure and efficient diamond blade technology, this machine is ideal for achieving smooth, transparent, and professional-grade edge polishing.
Below are the detailed technical specifications of the U-P1500V model. With adjustable cutting speed, high spindle rotation, and minimal cutting tolerance, it ensures precise performance while remaining energy-efficient and space-saving. Whether you're working with signage, LED panels, or acrylic displays, this model offers a reliable polishing solution for your production needs.
| Model No. | U-P1500V Straight Acrylic Diamond Polishing Machine |
|---|---|
| Processing Length | Unlimited (Recommend the length within 1.5 meters) |
| Processing Angle | 90 degrees |
| Polish Max. Thickness | 30mm |
| Bevel Surface Polishing Max. Thickness | 45mm |
| Machine Power | 220V / 380V |
| Spindle Speed | 2000β20000 RPM |
| Cutting Speed | 0β1000 mm/min |
| Cutting Tolerance | β€0.01mm |
| Whole Machine Power | 2KW |
| Machine Size | 1100 Γ 520 Γ 1050 mm |
| Machine Weight | 330 KG |
| Package Size | 1220 Γ 620 Γ 1230 mm |
| Package Weight | 380 KG |
| Polishing Tools | 1 Piece finishing tool, 2 Pieces roughing tools |
U-P1500V Acrylic Polishing Machine Working Video
Price Lists
| Models | Basic Working Parameters | Price |
|---|---|---|
| U-P1500V | Processing Angle 90 degrees; Polish Max. Thickness 30mm; Bevel Surface Polishing Max. Thickness:45mm | $4,000 |
| Polishing Tools | Contains 1 Piece finishing tool, 2 Pieces roughing tools | $150 |
Applications
The U-P1500V Straight Acrylic Diamond Polishing Machine is specially developed for precise straight-edge polishing and trimming, making it a reliable solution for a wide range of materials and industries. It is widely used in signage production, LED lightboxes, acrylic displays, and optical-grade plastic fabrication. Applicable materials include:
- Acrylic (PMMA)
- Plexiglass
- Cast and Extruded Acrylic Sheets
- Plastic Panels
- Organic Glass
- PVC, PETG, and PE
FAQ (Frequently Asked Questions)
1. How long does it take to deliver the U-P1500V acrylic polishing machine?
For our standard models like the U-P1500V, delivery usually takes 7 to 15 working days after deposit confirmation. For large volume orders or customized configurations, production may take up to 30 days depending on the complexity and options selected.
2. What quality control measures do you have in place?
Our machines undergo rigorous inspection before leaving the factory. We use high-precision components and diamond tools to ensure mirror-quality edge polishing. Each unit is fully tested under load to guarantee long-term durability and cutting accuracy within Β±0.01mm.
3. What if the machine gets damaged or breaks down during use?
We offer a 12-month warranty for all core components (excluding consumables). During this period, we provide free replacement of any defective parts. If the issue is minor and can be repaired locally, you may send us the repair invoice, and we will reimburse the reasonable cost.
4. Can I get technical support and training after purchase?
Absolutely. We provide full English manuals, operation videos, and remote technical support via email or WhatsApp. For bulk buyers, we can also offer online training or arrange on-site service depending on location and project size.
5. What payment methods do you accept?
Our standard payment term is 50% deposit via T/T or Alibaba Trade Assurance, and 50% balance before shipment. For repeat buyers and long-term partners, flexible terms may be discussed.
U-P1500V
Models45mm
Bevel Surface Polishing Max. ThicknessPrecision Manufacturing
Our machine is built with robust materials for stable performance and is precision-made with meticulous care.
Warranty
3 Years
Delivery
3 Days
Get Latest Quotation.
Contact us now to confirm your best machine, receive a competitive quotation and delivery details.
ContactFAQ (Frequently Asked Questions)
1. What are the main functions of the Acrylic Trimming Chamfering Polishing Machine?
The Acrylic Trimming Chamfering Polishing Machine is a versatile tool designed to perform edge trimming, beveling (chamfering), and polishing on various materials. It delivers high-quality finishes with remarkable speed and precision. The machine is suitable for processing materials such as acrylic (PMMA), plexiglass, PVC, PETG, and PE. It accommodates diverse edge finishing requirements. The integrated automatic feeding system ensures stable and efficient operation, enhancing the overall polishing accuracy.
2. What is the typical delivery time?
Our standard delivery time is approximately 3 days. However, if you require customized tools for specific bevel angles or have other special requirements, the delivery period may be extended. We recommend contacting us directly to discuss your specific needs and obtain an accurate delivery timeline.
3. What maintenance is required to ensure optimal performance?
- Clean the Work Area: After each use, remove any debris or dust from the machine and surrounding area to prevent accumulation.
- Inspect and Replace Tools: Regularly check the condition of the diamond tools. Replace or resharpen them as needed to maintain polishing quality.
- Lubricate Moving Parts: Periodically lubricate the machine's moving components, such as guide rails and spindles, to ensure smooth operation.
- Check Electrical Components: Inspect electrical connections and control panels for any signs of wear or damage. Ensure all components are functioning correctly.
