Overview
The Acrylic Edge Chamfering & Polishing Machine is engineered to deliver high-precision, mirror-finish edges on acrylic (PMMA) and other plastic materials. Equipped with a self-developed automatic feeder featuring stepless speed control, it ensures stable and efficient feeding, significantly enhancing polishing accuracy, especially for small workpieces.
The machine's worktable is crafted from polished and electroplated steel, providing a smooth and flat surface that prevents scratches during processing. Its adjustable cutting angle ranges from 0° to 60°, including 45°, accommodating various beveling requirements.
Designed with user convenience in mind, the machine features an intuitive interface and a compact footprint, making it suitable for both small workshops and larger production facilities. Its robust construction ensures durability and consistent performance over time.
Whether you're producing display stands, signage, or decorative elements, this machine offers a reliable solution for achieving high-quality, polished edges on acrylic components.
It supports chamfering from 0 to 60 degrees and also performs acrylic polishing and edge trimming. By using different cutting tools, it can achieve beveled edges, rounded corners, and curved acrylic edges.
- Max Processing Thickness 110mm
- Max.Chamfer Angle:60 degrees
- Working Speed: 0-6000mm/min
- Spindle Speed: 0-24000rpm
Technical Specs
The acrylic edge chamfering machine is meticulously engineered for durability and precision. Its robust construction ensures high structural strength, while the stainless steel worktable offers exceptional flatness and smoothness, minimizing the risk of surface scratches on workpieces. Equipped with an automatic feeding system, the machine provides stable and adjustable feeding speeds, significantly enhancing polishing accuracy and efficiency. The humanized design of the cutter head, featuring a dial indicator tool setting instrument, allows for simple installation and precise adjustments. The processing angle is adjustable between 0° and 60°, catering to various polishing requirements.
| Peformance | |
|---|---|
| Spindle Speed: | 0-24000rpm |
| Spindle Power: | 2.2KW |
| Working Speed: | 0-6000mm/min |
| Processing | |
|---|---|
| Max. Feeding Thickness: | 110mm |
| Max.Chamfer Angle: | 60 degrees |
| Edge Polishing: | Yes |
| Feeding: | Auto |
| Body | |
|---|---|
| Machine Size: | 1050mm×650mm×1450mm |
| Package Size: | 1200mmx850mmx1500mm |
| Weight: | 300KG |
| Requirements | |
|---|---|
| Electricity | AC 220V 380V 480V 50-60HZ |
| Total Power: | 2.5KW |
| Dust Hood: | Yes |

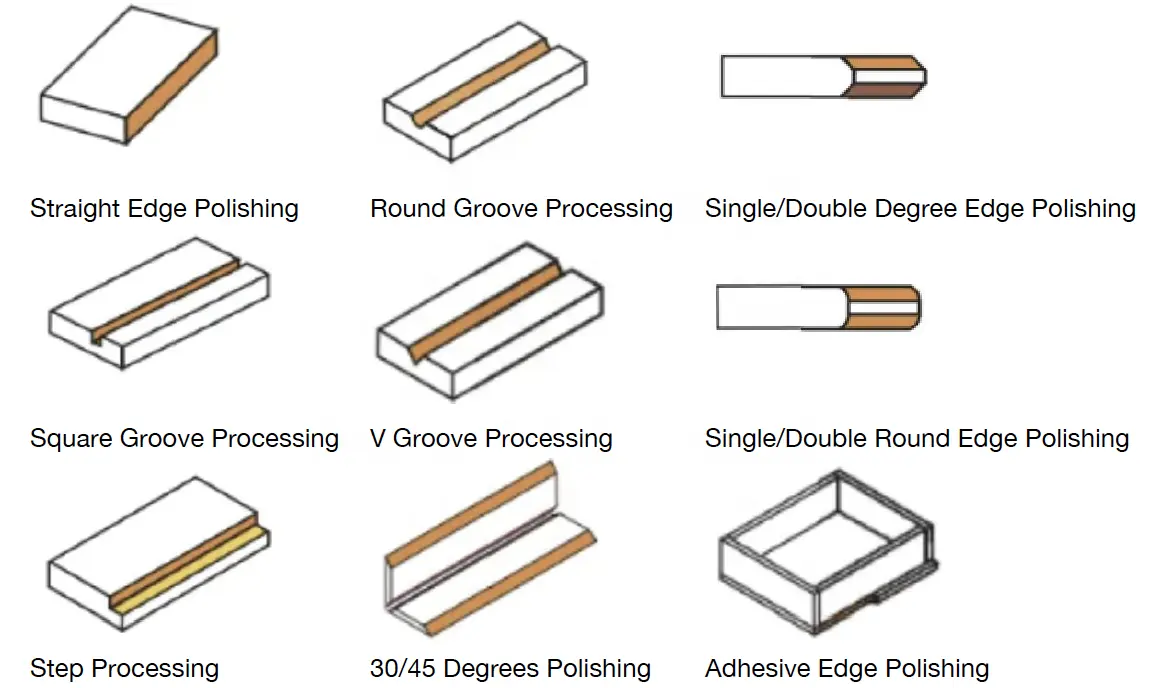

Chamfering Shapes
Machine Working Video
Price Lists
| Models | Processing Length x Thickness | Price |
|---|---|---|
| U-P1000 | 1300mm (51.18") x 110mm(4.33") | $3,750 |
| Chamfering tools | 0 15 30 45 60 degrees | Customized based on specifications |
Applications
The Acrylic Trimming, Chamfering and Polishing Machine is designed for a variety of materials, making it highly versatile for different applications. These include:
- Acrylic (PMMA)
- Plexiglass
- Organic Glass
- Plastic
- PVC
- PMMA, PETG, and PE

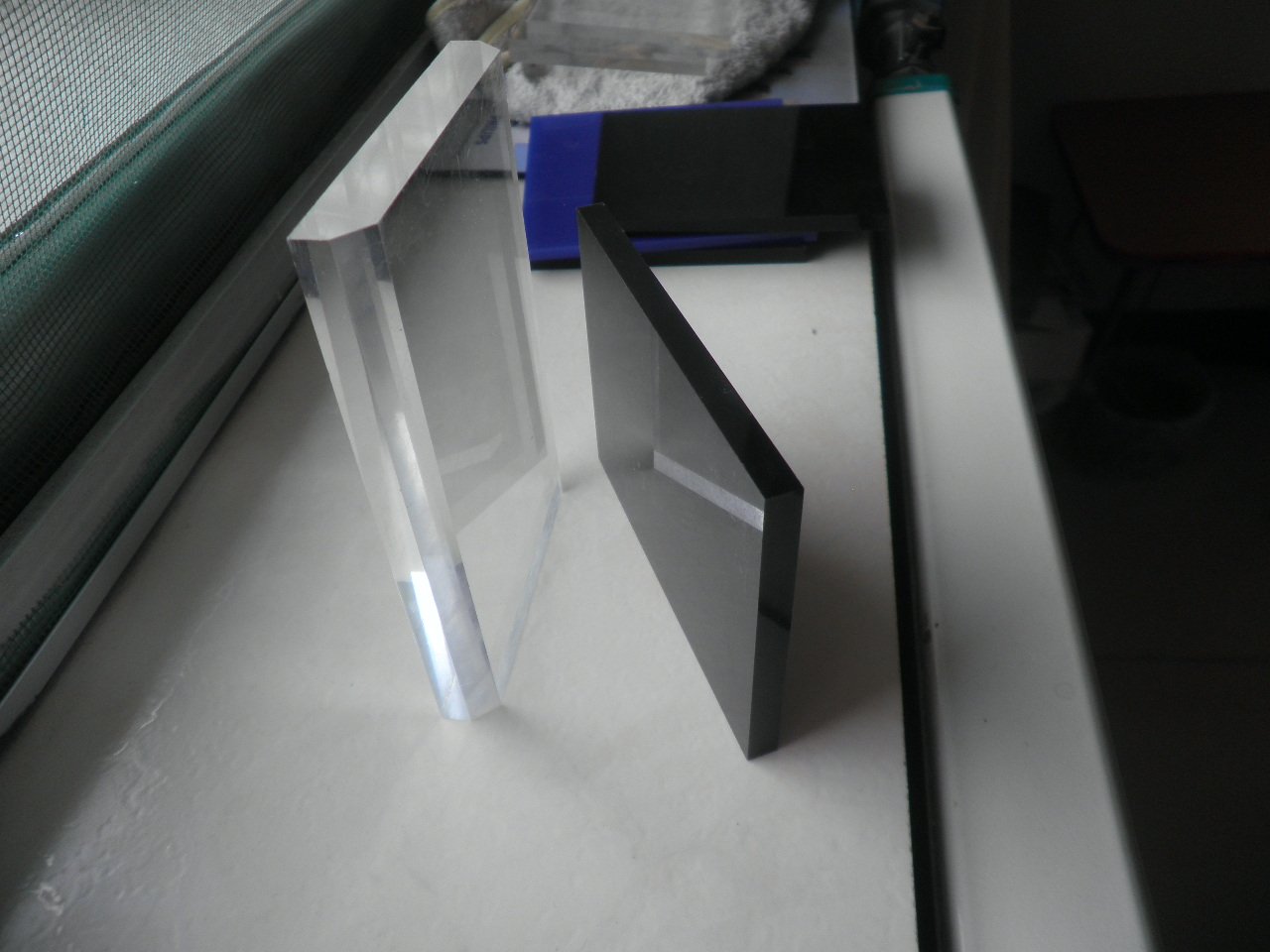

Working Gallery
U-P1000
Models110mm (4.33")
Maximum Processing Acrylic ThicknessPrecision Manufacturing
Our machine is built with robust materials for stable performance and is precision-made with meticulous care.
Warranty
3 Years
Delivery
3 Days
Get Latest Quotation.
Contact us now to confirm your best machine, receive a competitive quotation and delivery details.
ContactFAQ (Frequently Asked Questions)
1. What are the main functions of the Acrylic Trimming Chamfering Polishing Machine?
The Acrylic Trimming Chamfering Polishing Machine is a versatile tool designed to perform edge trimming, beveling (chamfering), and polishing on various materials. It delivers high-quality finishes with remarkable speed and precision. The machine is suitable for processing materials such as acrylic (PMMA), plexiglass, PVC, PETG, and PE. It accommodates diverse edge finishing requirements. The integrated automatic feeding system ensures stable and efficient operation, enhancing the overall polishing accuracy.
2. What is the typical delivery time?
Our standard delivery time is approximately 3 days. However, if you require customized tools for specific bevel angles or have other special requirements, the delivery period may be extended. We recommend contacting us directly to discuss your specific needs and obtain an accurate delivery timeline.
3. What maintenance is required to ensure optimal performance?
- Clean the Work Area: After each use, remove any debris or dust from the machine and surrounding area to prevent accumulation.
- Inspect and Replace Tools: Regularly check the condition of the diamond tools. Replace or resharpen them as needed to maintain polishing quality.
- Lubricate Moving Parts: Periodically lubricate the machine's moving components, such as guide rails and spindles, to ensure smooth operation.
- Check Electrical Components: Inspect electrical connections and control panels for any signs of wear or damage. Ensure all components are functioning correctly.
